socktop

socktop is a remote system monitor with a rich TUI interface, inspired by top and btop, that communicates with a lightweight remote agent over WebSockets.

It lets you watch CPU, memory, disks, network, temperatures, and processes on another machine in real-time — from the comfort of your terminal.

---

Features

• 📡 Remote monitoring via WebSocket — lightweight agent sends JSON metrics
• 🖥 Rich TUI built with ratatui
• 🔍 Detailed CPU view — per-core history, current load, and trends
• 📊 Memory, Swap, Disk usage — human-readable units, color-coded
• 🌡 Temperatures — CPU temperature with visual indicators
• 📈 Network throughput — live sparkline graphs with peak tracking
• 🏷 Top processes table — PID, name, CPU%, memory, and memory%
• 🎨 Color-coded load, zebra striping for readability
• ⌨ Keyboard shortcuts:
  • q / Esc → Quit

---

Architecture

socktop has two components:

1. Agent (remote side)
   A small Rust WebSocket server that runs on the target machine and gathers metrics via sysinfo.

2. Client (local side)
   The TUI app (socktop) that connects to the agent’s /ws endpoint, receives JSON metrics, and renders them.

The two communicate over a persistent WebSocket connection.

---

Adaptive (idle-aware) sampling

The socktop agent now samples system metrics only when at least one WebSocket client is connected. When idle (no clients), the sampler sleeps and CPU usage drops to ~0%.

How it works

• The WebSocket handler increments/decrements a client counter in AppState on connect/disconnect.
• A background sampler wakes when the counter transitions from 0 → >0 and sleeps when it returns to 0.
• The most recent metrics snapshot is cached as JSON for fast responses.

Cold start behavior

• If a client requests metrics while the cache is empty (e.g., just started or after a long idle), the agent performs a one-off synchronous collection to respond immediately.

Tuning

• Sampling interval (active): update spawn_sampler(state, Duration::from_millis(500)) in socktop_agent/src/main.rs.
• Always-on or low-frequency idle sampling: replace the “sleep when idle” logic in socktop_agent/src/sampler.rs with a low-frequency interval. Example sketch:

// In sampler.rs (sketch): sample every 10s when idle, 500ms when active
let idle_period = Duration::from_secs(10);
loop {
    let active = state.client_count.load(Ordering::Relaxed) > 0;
    let period = if active { Duration::from_millis(500) } else { idle_period };
    let mut ticker = tokio::time::interval(period);
    ticker.tick().await;
    if !active {
        // wake early if a client connects
        tokio::select! {
            _ = ticker.tick() => {},
            _ = state.wake_sampler.notified() => continue,
        }
    }
    let m = collect_metrics(&state).await;
    if let Ok(js) = serde_json::to_string(&m) {
        *state.last_json.write().await = js;
    }
}

---

Installation

Prerequisites

• Rust 1.75+ (recommended latest stable)
• Cargo package manager

curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh

Build from source

git clone https://github.com/jasonwitty/socktop.git
cd socktop
cargo build --release

Install as a cargo binary

cargo install --path ./socktop/
cargo install --path ./socktop_agent/

This will install the socktop binary into ~/.cargo/bin.

---

Running

1. Start the agent on the remote machine

The agent binary listens on a TCP port and serves /ws:

socktop_agent -p 3031

Tip: You can run the agent under systemd, inside a Docker container, or just in a tmux/screen session.

2. Connect with the client

From your local machine:

socktop ws://REMOTE_HOST:8080/ws

Example:

socktop ws://192.168.1.50:8080/ws

---

Usage

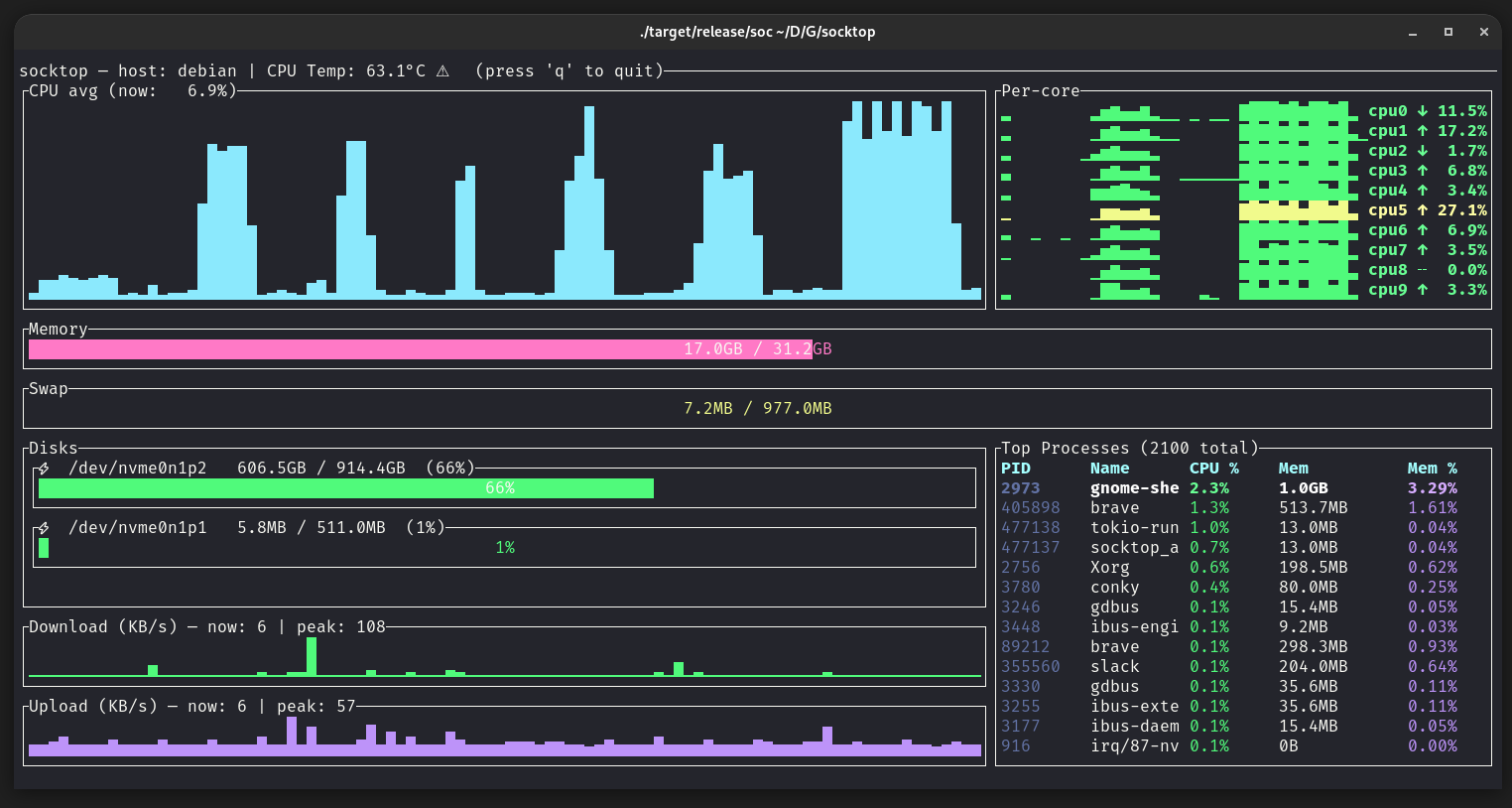

When connected, socktop displays:

Left column:

• CPU avg graph — sparkline of recent overall CPU usage
• Memory gauge — total and used RAM
• Swap gauge — total and used swap
• Disks — usage per device (only devices with available space > 0)
• Network Download/Upload — sparkline in KB/s, with current & peak values

Right column:

• Per-core history & trends — each core’s recent load, current %, and trend arrow
• Top processes table — top 20 processes with PID, name, CPU%, memory usage, and memory%

---

Configuring the agent port

The agent listens on TCP port 3000 by default. You can override this via a CLI flag, a positional port argument, or an environment variable:

• CLI flag:
  • socktop_agent --port 8080
  • socktop_agent -p 8080
• Positional:
  • socktop_agent 8080
• Environment variable:
  • SOCKTOP_PORT=8080 socktop_agent

Help:

• socktop_agent --help

The TUI should point to ws://HOST:PORT/ws, e.g.:

• cargo run -p socktop -- ws://127.0.0.1:8080/ws

---

Keyboard Shortcuts

Key	Action
q or Esc	Quit

---

Security (optional token)

By default, the agent exposes metrics over an unauthenticated WebSocket. For untrusted networks, set an auth token and pass it in the client URL:

• Server:
  • SOCKTOP_TOKEN=changeme socktop_agent --port 3000
• Client:
  • socktop ws://HOST:3000/ws?token=changeme

---

Run socktop agent as a systemd service

Prerequisites

• systemd-based Linux
• Built or downloaded socktop_agent binary
• Port 3000 reachable (or adjust)

1. Install the binary

# From your project root; adjust path to your built binary if needed
sudo install -o root -g root -m 0755 ./target/release/socktop_agent /usr/local/bin/socktop_agent

2. Create a dedicated user

sudo groupadd --system socktop || true
# On Debian/Ubuntu the nologin shell is /usr/sbin/nologin; on RHEL/CentOS it may be /sbin/nologin
sudo useradd --system --gid socktop --create-home --home-dir /var/lib/socktop --shell /usr/sbin/nologin socktop || true

3. Install the systemd unit

# Using the provided unit file from this repo
sudo install -o root -g root -m 0644 docs/socktop-agent.service /etc/systemd/system/socktop-agent.service
sudo systemctl daemon-reload

4. Enable and start

sudo systemctl enable --now socktop-agent.service

5. Verify it’s running

sudo systemctl status socktop-agent --no-pager
sudo journalctl -u socktop-agent -n 100 --no-pager

# Check the port
ss -ltnp | grep socktop_agent

# Or test locally (adjust if your agent exposes a different endpoint)
curl -v http://127.0.0.1:3000/ || true

6. Configure authentication (optional)

# Add a token without editing the unit file directly
sudo systemctl edit socktop-agent
# Then add:
# [Service]
# Environment=SOCKTOP_TOKEN=your_strong_token

sudo systemctl daemon-reload
sudo systemctl restart socktop-agent

7. Change the listen port (optional)

sudo systemctl edit socktop-agent
# Then add:
# [Service]
# ExecStart=
# ExecStart=/usr/local/bin/socktop_agent --port 8080

sudo systemctl daemon-reload
sudo systemctl restart socktop-agent

8. Open the firewall (if applicable)

# UFW
sudo ufw allow 3000/tcp

# firewalld
sudo firewall-cmd --permanent --add-port=3000/tcp
sudo firewall-cmd --reload

9. Uninstall

sudo systemctl disable --now socktop-agent
sudo rm -f /etc/systemd/system/socktop-agent.service
sudo systemctl daemon-reload
sudo rm -f /usr/local/bin/socktop_agent
sudo userdel -r socktop 2>/dev/null || true
sudo groupdel socktop 2>/dev/null || true

---

Platform notes

• Linux x86_64/AMD/Intel: fully supported.
• Raspberry Pi:
  • 64-bit: rustup target add aarch64-unknown-linux-gnu; build on-device for simplicity.
  • 32-bit: rustup target add armv7-unknown-linux-gnueabihf.
• Windows:
  • TUI and agent build/run with stable Rust. Use PowerShell:
    • cargo run -p socktop_agent -- --port 3000
    • cargo run -p socktop -- ws://127.0.0.1:3000/ws
  • CPU temperature may be unavailable; display will show N/A.

---

Using tmux to monitor multiple hosts

You can use tmux to show multiple socktop instances in a single terminal.

Prerequisites:

• Install tmux (Ubuntu/Debian: sudo apt-get install tmux)

Key bindings (defaults):

• Split left/right: Ctrl-b %
• Split top/bottom: Ctrl-b "
• Move between panes: Ctrl-b + Arrow keys
• Show pane numbers: Ctrl-b q
• Close a pane: Ctrl-b x
• Detach from session: Ctrl-b d

Two panes (left/right)

• This creates a session named "socktop", splits it horizontally, and starts two socktops.

tmux new-session -d -s socktop 'socktop ws://HOST1:3000/ws' \; \
  split-window -h 'socktop ws://HOST2:3000/ws' \; \
  select-layout even-horizontal \; \
  attach

Four panes (top-left, top-right, bottom-left, bottom-right)

• This creates a 2x2 grid with one socktop per pane.

tmux new-session -d -s socktop 'socktop ws://HOST1:3000/ws' \; \
  split-window -h 'socktop ws://HOST2:3000/ws' \; \
  select-pane -t 0 \; split-window -v 'socktop ws://HOST3:3000/ws' \; \
  select-pane -t 1 \; split-window -v 'socktop ws://HOST4:3000/ws' \; \
  select-layout tiled \; \
  attach

Tips:

• Replace HOST1..HOST4 (and ports) with your targets.
• Reattach later: tmux attach -t socktop
• Kill the session: tmux kill-session -t socktop

---

Example agent JSON

socktop expects the agent to send metrics in this shape:

{
  "cpu_total": 12.4,
  "cpu_per_core": [11.2, 15.7, ...],
  "mem_total": 33554432,
  "mem_used": 18321408,
  "swap_total": 0,
  "swap_used": 0,
  "process_count": 127,
  "hostname": "myserver",
  "cpu_temp_c": 42.5,
  "disks": [{"name":"nvme0n1p2","total":512000000000,"available":320000000000}],
  "networks": [{"name":"eth0","received":12345678,"transmitted":87654321}],
  "top_processes": [
    {"pid":1234,"name":"nginx","cpu_usage":1.2,"mem_bytes":12345678}
  ]
}

---

Development

Run in debug mode:

cargo run -- ws://127.0.0.1:8080/ws

Code formatting & lint:

cargo fmt
cargo clippy

---

Roadmap

• Configurable refresh interval
• Filter/sort top processes in the TUI
• Export metrics to file
• TLS / WSS support
• Agent authentication

---

License

MIT License — see LICENSE.

---

Acknowledgements

• ratatui for terminal UI rendering
• sysinfo for system metrics
• tokio-tungstenite for WebSocket client/server
